Looking for 15 kW air compressor options in Malaysia? Send Vortex Compressors your operating pressure, air demand and project location for a quotation. This guide helps you compare the 15 kW motor-power class, approximately 20 HP, with your factory or workshop requirements. The selected model and supply availability are confirmed in the technical offer.
MAC3 — Made in France
On this page — explore the guide
15 kW air compressor Malaysia: price and selection
Ask for an itemised quotation in Malaysian ringgit (RM) that identifies the compressor model and the scope of supply. Compressor-only pricing differs from a package with an air dryer, receiver, filters, delivery, installation and commissioning. Confirm applicable taxes, warranty terms, lead time and payment conditions in the offer.
Shared workshop and assembly air
For a workshop supplying both pneumatic tools and an assembly bench, identify the air consumption of each activity and when they coincide. Ask for performance at the pressure needed by the most demanding connected equipment.
If one task needs unusually high pressure, discuss a dedicated supply rather than raising the pressure of the entire network.
What does 15 kW / approximately 20 HP tell you?
The rating describes motor power, not usable compressed-air output. Request free air delivery in CFM or m³/min at the pressure your equipment needs. Compare machines at the same pressure and test basis; differences in drive, cooling and controls can affect the complete package. HP descriptions are approximate motor-class references, so the nameplate and technical datasheet take precedence.
Fixed speed, VSD and the operating pattern
Describe your daily operating hours and the variation between idle periods, normal work and peak production. A fixed-speed machine and a variable speed drive (VSD) machine can suit different demand patterns. Evaluate the proposed controls using load data and the manufacturer’s operating range; compare projected energy savings using actual load data and the manufacturer’s operating range.
Explore the MAC3 5–15 kW variable-speed range and screw compressor options. These range pages provide context; ask for the exact model, motor rating and performance included in your quotation.
Dryer, receiver and filtration
Size the dryer for the selected compressor’s delivered airflow and actual inlet conditions. Malaysia’s warm, humid operating environment makes condensate management an important part of the system discussion. Specify the air quality needed by the process, then compare treatment options and the pressure losses through filters, dryers and pipework.
Receiver volume depends on demand fluctuations, the operating pressure band and compressor controls. Ask for the receiver’s technical documents and confirm the applicable Malaysian installation requirements with the project team. See the air receiver tank guide and compressed-air treatment range.
Prepare your Malaysia quotation enquiry
Provide your site location, required pressure at the equipment, estimated or measured airflow, hours of operation and available electrical supply. Include a nameplate photograph if you are replacing a machine. Ask the supplier to confirm voltage, phase, frequency, starting requirements, ventilation, access and the responsibilities for electrical and piping work.
For enquiries in Shah Alam, Selangor, Kuala Lumpur or elsewhere in Malaysia, identify the delivery location so transport, commissioning and service arrangements can be scoped. Ask about scheduled maintenance, consumables and spare-parts support rather than assuming these are included in the equipment price.
15 kW screw air compressor: published MAC3 model comparison
MAC3 lists the MSD-V 15 at 15 kW / 20 HP. The table uses the manufacturer’s frame-mounted MSD-V data and shows the variable-flow range at each stated pressure. It is a catalogue reference for evaluating your enquiry, not a confirmation of local stock or the exact configuration that will be supplied.
| MAC3 model | Power / catalogue HP | 7.5 bar: m³/min | 10 bar: m³/min | 13 bar: m³/min |
|---|---|---|---|---|
| MSD-V 11 | 11 kW / 15 HP | 0.59–1.98 | 0.55–1.67 | 0.66–1.33 |
| MSD-V 15 | 15 kW / 20 HP | 0.76–2.25 | 0.72–2.15 | 0.90–1.80 |
| MSD-V 18 | 18.5 kW / 25 HP | 0.80–3.00 | 0.70–2.60 | 0.70–2.10 |
Source: MAC3’s published 5–15 kW frame-mounted MSD-V performance table. Read the table with the manufacturer’s current documentation for the exact proposed model. Different platforms, including permanent-magnet models, have separate performance data.
At 10 bar, the published upper airflow for MSD-V 15 is 2.15 m³/min, approximately 76 CFM. The CFM figure is a rounded unit conversion, not a separate test result. The 7.5 bar and 13 bar columns describe different operating points, so use the column matching your requirement when comparing proposals.
The lower end of each airflow range also matters. Explain your minimum sustained demand and ask how the selected controls operate below that level. An advertised maximum flow does not describe the entire working week. HP figures in this reference are the manufacturer’s catalogue labels, which can differ from a direct mathematical conversion.
Separate workshop air from production-cell demand
A 20 HP enquiry often combines intermittent workshop tools with an assembly or packaging task. List the consumption of each machine and the operating sequence. Distinguish machine actuators from continuous air blowing, because their duration can change the total demand considerably.
If a single task needs higher pressure, discuss whether it should share the entire plant pressure setting. Raising every outlet to suit one task may change running cost and air treatment requirements. The minimum pressure should be assessed at the actual equipment.
For a 15 kW screw air compressor, the offered cabinet and package configurations can have different specifications. The manufacturer table below identifies the frame-mounted reference. Ask for the exact tank-mounted or compact model data when comparing a packaged installation.
20 HP screw air compressor enquiries in Malaysia
A request using the 20 HP label should still identify the actual required airflow and pressure. For this 15 kW screw air compressor guide, HP is a comparison aid rather than evidence that every machine using the same label has identical output. Record the model and manufacturer in the final offer.
If you are comparing another brand or platform, check its free air delivery at the same pressure and the basis of the performance data. Do not combine one model’s motor rating, another model’s airflow and a photograph of a third model into a single specification. Ask the supplier to provide a consistent technical description for the exact equipment.
Seven useful checks for a 15 kW screw air compressor quotation
| Check | What the written offer should identify |
|---|---|
| 1. Equipment identity | Manufacturer, series, model, motor rating and selected working pressure. |
| 2. Delivered air | Air delivery at the required pressure, with the applicable performance basis. |
| 3. Controls | Fixed-speed or VSD arrangement, operating range and interaction with retained compressors. |
| 4. Air treatment | Dryer, filters, drains and the air-quality requirement used for selection. |
| 5. Receiver | Capacity, pressure rating, accessories and documents for the proposed tank. |
| 6. Installation | Delivery, positioning, pipework, electrical connections and commissioning responsibilities. |
| 7. Commercial scope | RM price, applicable taxes, validity, payment terms, lead time, warranty and service arrangements. |
Use the checklist to compare the complete scope rather than the lowest cabinet price. A 15 kW screw air compressor package may include supporting equipment that another offer excludes. Mark each item as included, excluded or provisional, and resolve any difference before selecting a supplier.
Request a quotation tied to your actual Malaysia site location. Access restrictions, lifting arrangements and the distance from the compressor room to the equipment can change installation responsibilities. Identify the people responsible for electrical work and pipework so these tasks are not left undefined between suppliers.
Prepare a demand record instead of guessing capacity
Record the connected machines, the air-consumption information available from their manufacturers and the combinations that operate together. Describe sustained demand separately from short peaks. Include cleaning and blow-off tasks if they share the same header, and note any planned machines that have not yet been installed.
A pressure observation is most useful when it includes the task, time and measurement location. A stable reading at the compressor and a low reading at one tool can indicate a different problem from a pressure drop across the entire network. Ask the competent service team to assess the relevant parts of the system before specifying a larger machine.
For a replacement 15 kW screw air compressor, supply a clear nameplate photograph and the recent service history. Explain whether the current concern is a recurring fault, insufficient air during production or a change in the plant’s operating pattern. These details help separate a repair enquiry from a capacity upgrade.
Compare lifecycle cost with documented assumptions
Equipment price is only one part of ownership cost. Compare maintenance, consumables and the installation scope alongside the electricity estimate. Ask the proposal to identify the expected operating hours and the input-power data used. A stated saving without an operating scenario is not a useful comparison between two offers.
For a simple electricity estimate, multiply measured or appropriately quoted average package input power in kW by annual operating hours to obtain kWh. Apply the relevant electricity tariff components to that consumption. Tariff categories, demand charges and the site’s actual operating pattern should be checked separately; this page does not assume a universal Malaysian RM/kWh rate.
The 15 kW screw air compressor motor nameplate is not a measurement of annual consumption. Running at part load, unloaded operation, cooling and other package components affect the real system. Ask for a comparison using the same demand profile, pressure and operating hours before treating a fixed-speed or VSD label as an energy-cost answer.
Agree commissioning and handover before ordering
Specify what will be checked at commissioning and what information will be handed over. Ask for the selected model’s manuals, service requirements and the records applicable to the supplied supporting equipment. Confirm who will explain normal operation, alarms and maintenance responsibilities to the site team.
Discuss access for routine servicing and how planned work will affect production. If the factory depends on continuous air, state the required continuity before the installation is ordered. The technical offer should explain any standby or retained equipment arrangement; availability of an emergency replacement should not be assumed.
Use the first operating period to compare the installed system with the requirement documented in the enquiry. Record production conditions, pressure observations and any unresolved alarms. Follow the manufacturer’s instructions and the agreed service process instead of changing controls or pressure settings merely to compensate for an unassessed problem.
Compare nearby compressor sizes
Compare the 22 kW selection guide with the complete electric screw compressor size guide. Choose between power classes using airflow and pressure requirements rather than motor size alone.
15 kW screw air compressor: compare documented operating points
The reviewed MAC3 reference identifies MSD-V15 as 15 kW / 20 HP. For a 15 kW screw air compressor enquiry, its published variable-flow ranges are 0.76–2.25 m³/min at 7.5 bar, 0.72–2.15 m³/min at 10 bar and 0.90–1.80 m³/min at 13 bar. Keep the pressure and model together when comparing offers. These are catalogue reference figures; ask for the exact offered configuration and current documentation before treating them as a supply commitment.
At 10 bar, the upper published figure for this reference is 2.15 m³/min, approximately 76 CFM by unit conversion. A 15 kW screw air compressor motor label does not establish that same flow at another pressure. Compare the separate operating points and ask the supplier to explain the actual plant requirement. A rounded CFM calculation is a reading aid, not an additional performance test.
A neighbouring reference, MSD-V18, uses a 18.5 kW / 25 HP catalogue label and lists 0.7–2.6 m³/min at 10 bar. Use it to frame a consistent comparison with the 15 kW screw air compressor class. A different motor rating should not be selected merely because it appears next in a catalogue. The written offer should explain the delivered-air requirement, controls and package scope that support the proposed choice.
15 kW screw air compressor: assembly and workshop loads worksheet
For a 15 kW screw air compressor project, separate the assembly equipment that needs continuous air from tools used for occasional fitting or cleaning. Record the pressure and air-quality requirements for each group. An assembly line and a general workshop may share one supply, but their operating schedules and acceptable interruptions can differ.
In the 15 kW screw air compressor enquiry, describe the effect of a short interruption on the assembly process. If an unfinished operation must be rejected or restarted, explain that consequence in the enquiry. Ask the project team to assess continuity and any retained compressor arrangement before selecting the system from the motor rating alone.
Prepare a written demand record for the 15 kW screw air compressor comparison. Give each process its own entry with required pressure, consumption information, typical cycle and periods of overlap. Mark estimated figures separately from measurements. Explain the busiest sustained duty and the minimum normal duty, because a short peak and a full shift of production should not be treated as the same operating requirement.
Ask the technical offer to explain any allowance made for planned production changes. A 15 kW screw air compressor proposal should distinguish today’s installed duty from future equipment that has not yet been connected. Include the project location in Malaysia and the expected installation period so access, commissioning and service responsibilities can be discussed with the same operating assumptions.
15 kW screw air compressor Malaysia price and package scope
Request the 15 kW screw air compressor price in Malaysian ringgit with an itemised equipment list. Compare compressor-only offers with compressor-only offers, or complete packages with the same boundary. Identify the dryer, receiver, filters, drains, delivery, unloading and commissioning scope separately. An illustration can explain a component but cannot establish that it is included in the quoted RM amount.
The 15 kW screw air compressor quotation should identify the exact model, working pressure and technical documents used to describe the equipment. Mark electrical connections, piping and ventilation as included, excluded or a defined responsibility of the project team. Confirm the proposed arrangement using the model’s dimensions and installation instructions rather than copying requirements from another power class.
For a 15 kW screw air compressor delivery to Shah Alam, Selangor, Kuala Lumpur or another Malaysian location, explain access and unloading restrictions before comparing total prices. Record warranty terms, payment conditions and the proposed supply schedule beside the same equipment scope. Ask who receives technical questions and fault reports, and how site assistance and sourced spare parts are arranged.
15 kW screw air compressor with dryer and service support
A 15 kW screw air compressor with dryer enquiry should state the required air quality and delivered airflow at the selected operating pressure. Ask which dryer rating conditions and corrections apply to the proposed inlet and ambient conditions. The photograph below is a dryer-range example, not a universal dryer selection or evidence that this unit matches every compressor in the requested motor class.
Include the receiver, filters, drains and supporting pipework in the 15 kW screw air compressor package discussion. Explain any existing moisture or pressure concern and ask the competent team to assess the relevant system components. Motor power alone cannot define the complete treatment arrangement. Keep the selected component models and their responsibilities visible in the written offer.

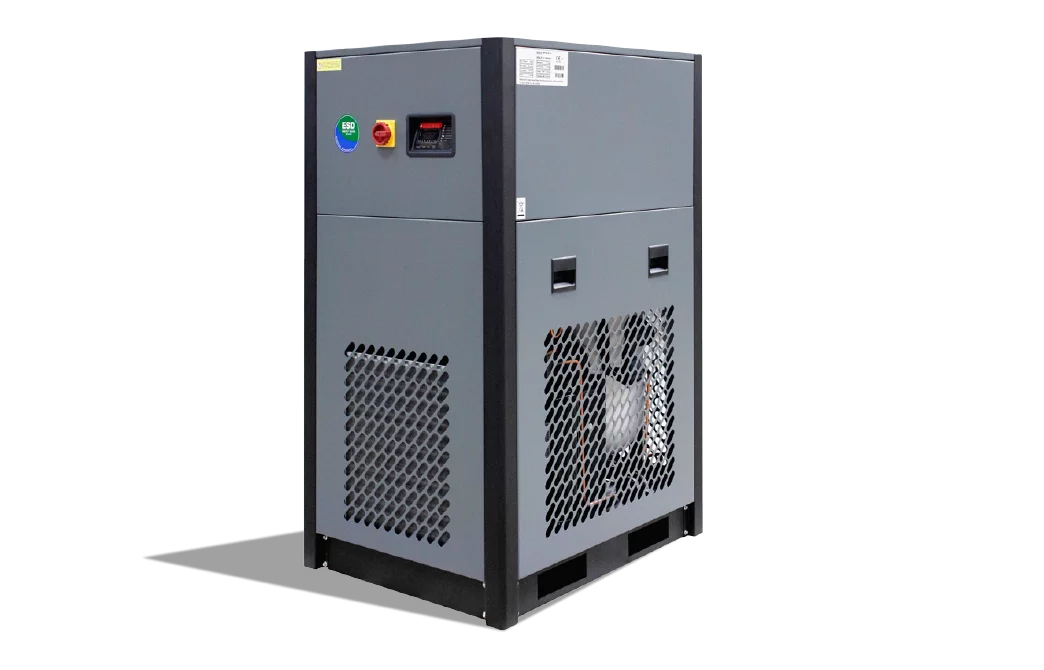

The Digipro image is a dryer-controller reference. For the 15 kW screw air compressor package, ask which readings, alarms and routine checks apply to the actual supplied dryer and compressor. Confirm the manuals and operator briefing included at handover. Do not assume a controller shown in a reference photograph is supplied with every model or provides functions that the technical offer has not identified.
Agree a commissioning and handover record for the 15 kW screw air compressor: exact equipment identity, site location, selected pressure, supporting equipment and commissioning date. State the production conditions under which the installation will be reviewed and the agreed process for recording unresolved concerns. Keep the manufacturer’s manuals and the written supply scope with the installation record.
For 15 kW screw air compressor service planning, request the maintenance schedule applicable to the exact offered model and the identified operating conditions. Clarify consumables, inspection responsibilities and whether a first planned service is included. The measurement photograph is a general audit reference; it does not establish that your site has been inspected or that a free inspection forms part of the offer.
Send the 15 kW screw air compressor enquiry to +60 12 275 7317 with the factory location, required pressure, airflow information, operating schedule and intended package scope. If replacing equipment, include its nameplate and service history. These details help the team distinguish a repair issue, a distribution concern and a capacity change before preparing a Malaysia quotation.
Frequently asked questions
Is a 15 kW compressor always approximately 20 HP? The figures describe an approximate motor-power class. Confirm the actual motor rating on the offered machine’s datasheet.
How much air does a 15 kW compressor deliver? Airflow varies by model and pressure. Ask for the manufacturer’s free air delivery at the operating point; motor power alone is insufficient.
Can I request a complete package? Include the dryer, receiver, filtration and installation requirements in your enquiry so the quotation states what is included and excluded.
Request your 15 kW compressor offer
Contact Vortex Compressors on +60 12 275 7317, or send your requirements through the contact page. Mention the 15 kW class, the pressure, air demand and your Malaysia site location.
