BIOGAS

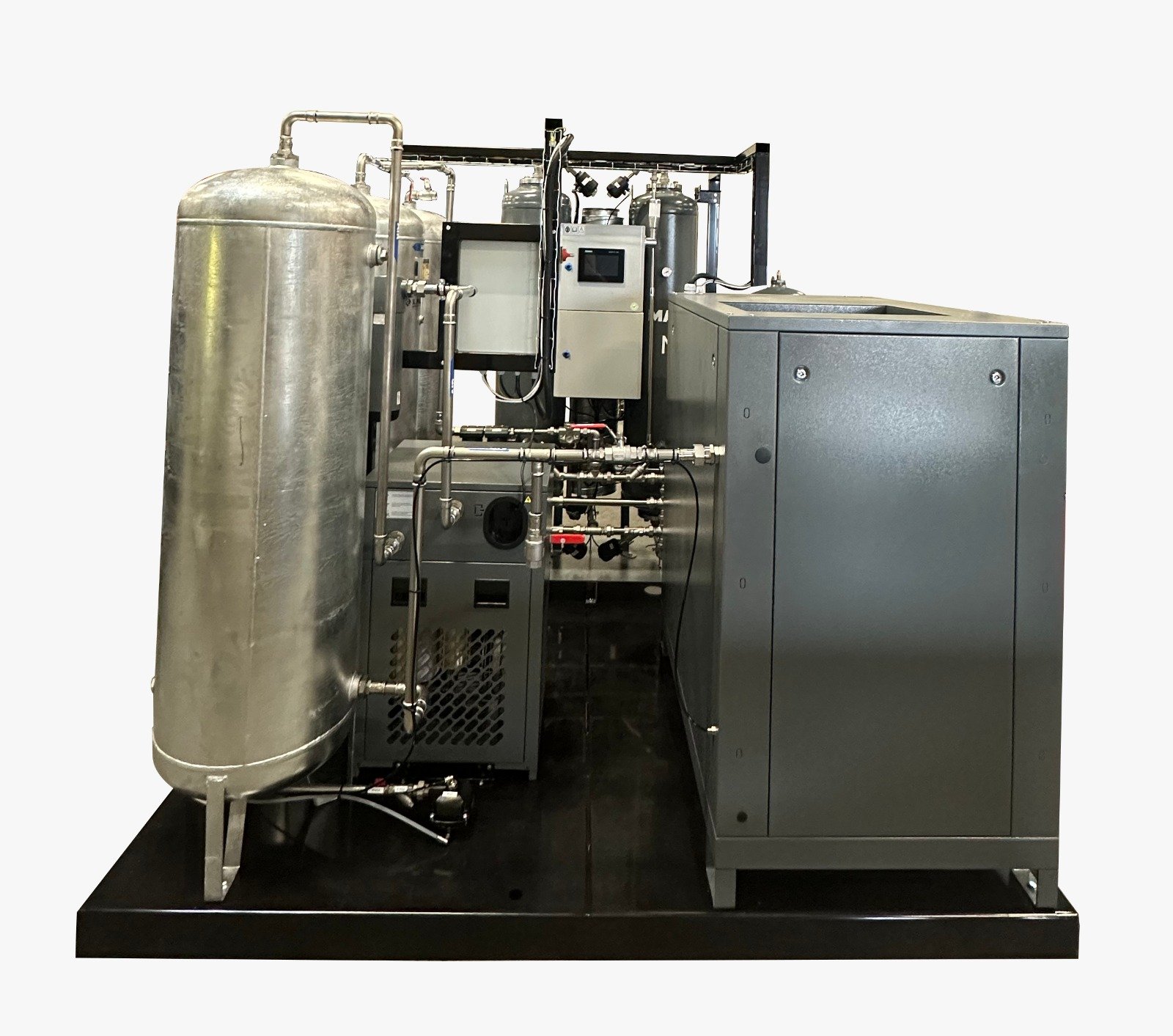

MAC3 Specialized Instrument Air for Biogas Installations
MAC3 supplied five units of specialized instrument air packages to CLARKE ENERGY, a leader in biogas systems, to support autonomous installations in agricultural fields.
- Performance: Each unit delivers a capacity of 40 m3/h with high-tier quality standard 1.2.1.
- Engineering Design: These systems feature a MAC3 5/7hp lubricated screw compressor, a desiccant dryer with a -40°C dew point, and complete line filtration.
- Field Durability: Designed for outdoor environments, the package includes stainless steel piping, a condensate circuit with a treatment unit, and an electrical cabinet for remote monitoring
ICE BLASTING
MAC3 High-Capacity Solutions for Aerospace Ice Blasting
For SAFRAN, MAC3 developed a robust instrument air package to power autonomous ice blasting machines requiring high mobility at customer sites.
- Performance: The system provides a high capacity of 350 m3/h at air quality 1.4.1.
- Technical Design: It utilizes a MAC3 50hp lubricated screw compressor with Variable Speed Drive (VSD) and a refrigerant dryer maintaining a +3°C dew point.
- System Integrity: The unit is built with stainless steel piping, isolating valves, and an electrical cabinet designed for site-wide power supply and remote data access
LABORATORY

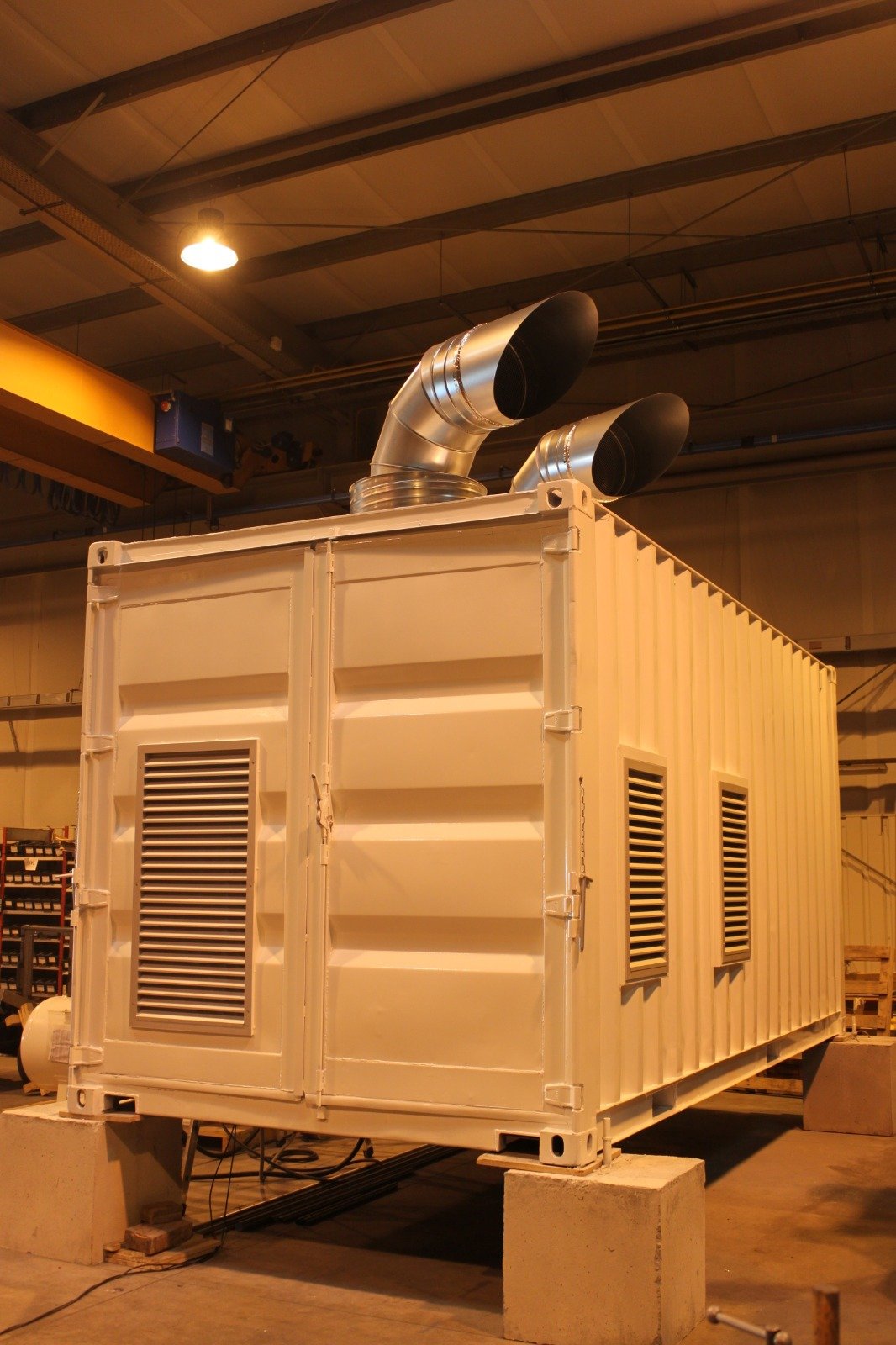

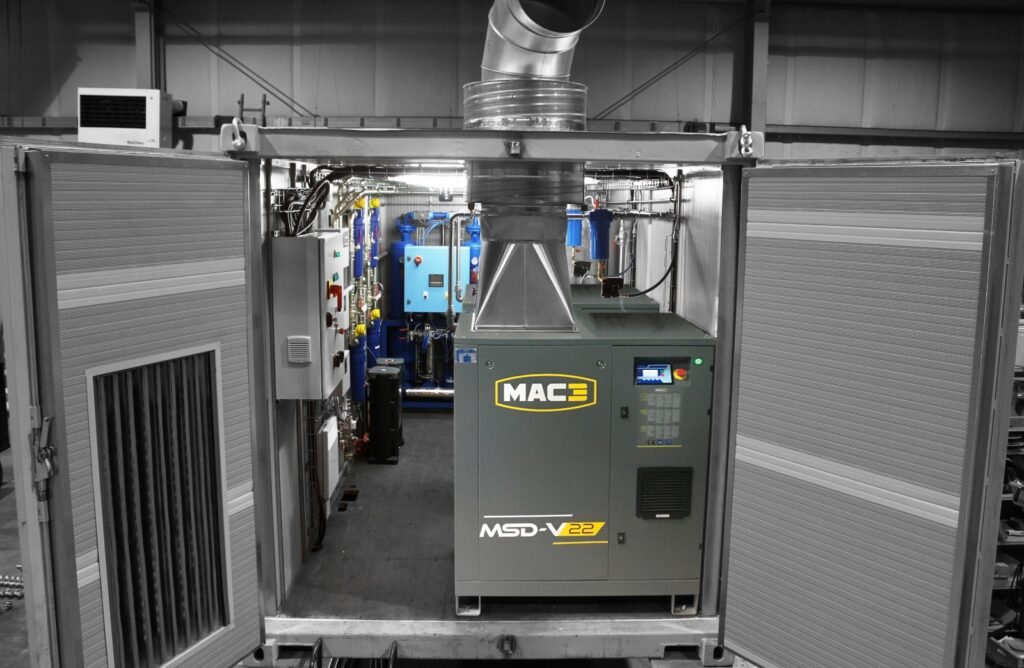

MAC3 Roof-Mounted Containerized Air System
This unique MAC3 installation for ECOLE DES MINES (a prestigious French engineering school) was engineered to overcome critical on-site space limitations.
- Innovation: Because the building could not be extended, the entire MAC3 package was installed in a container located on the roof.
- Technical Design: Features two MAC3 30hp VSD lubricated screw compressors and a heat regeneration desiccant dryer.

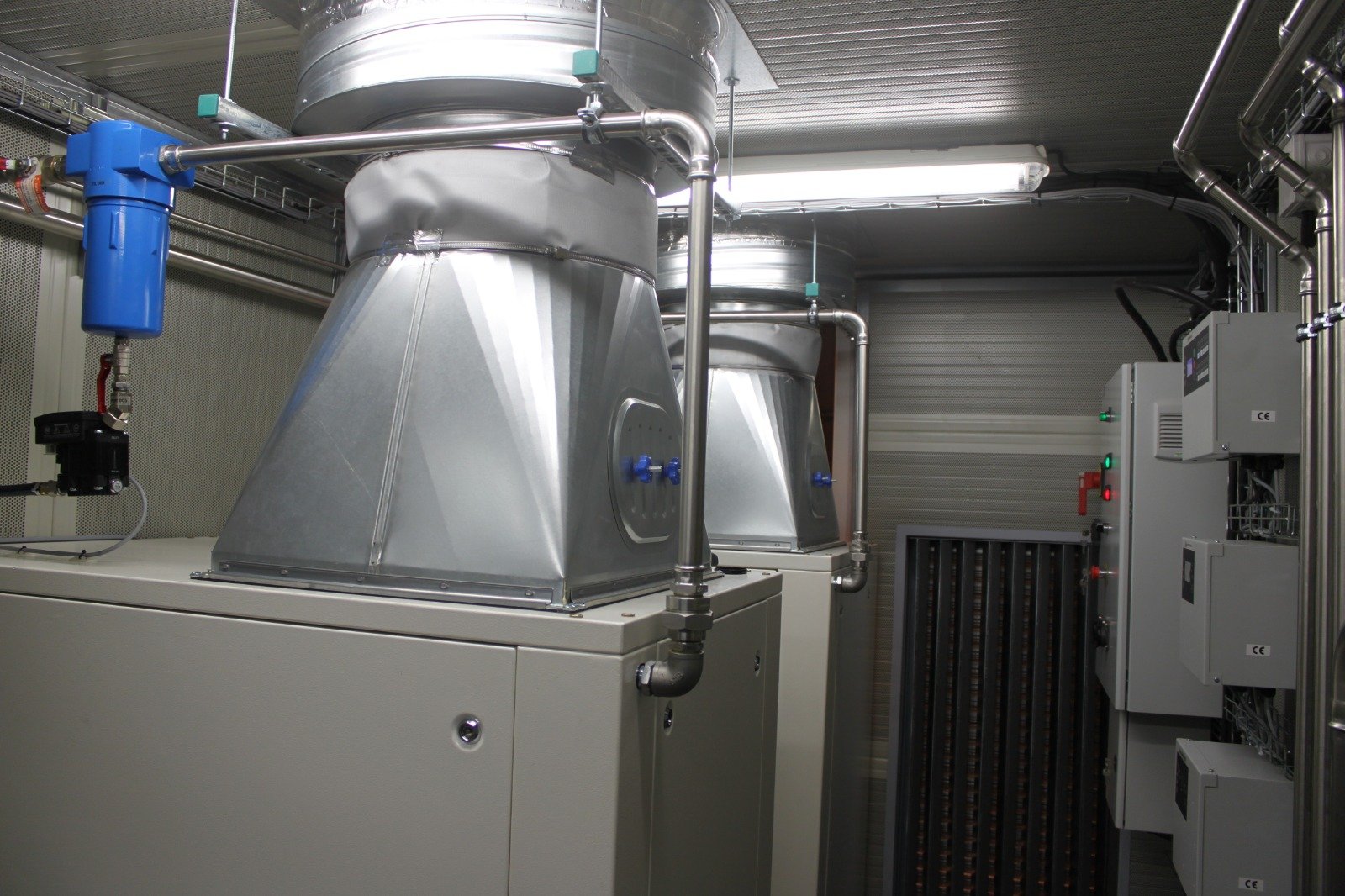

- Climate Control: The container includes a specialized ducting system for hot air exhaust, integrated cooling and heating for winter, and a PLC system for intelligent multi-compressor room management
CONSTRUCTION

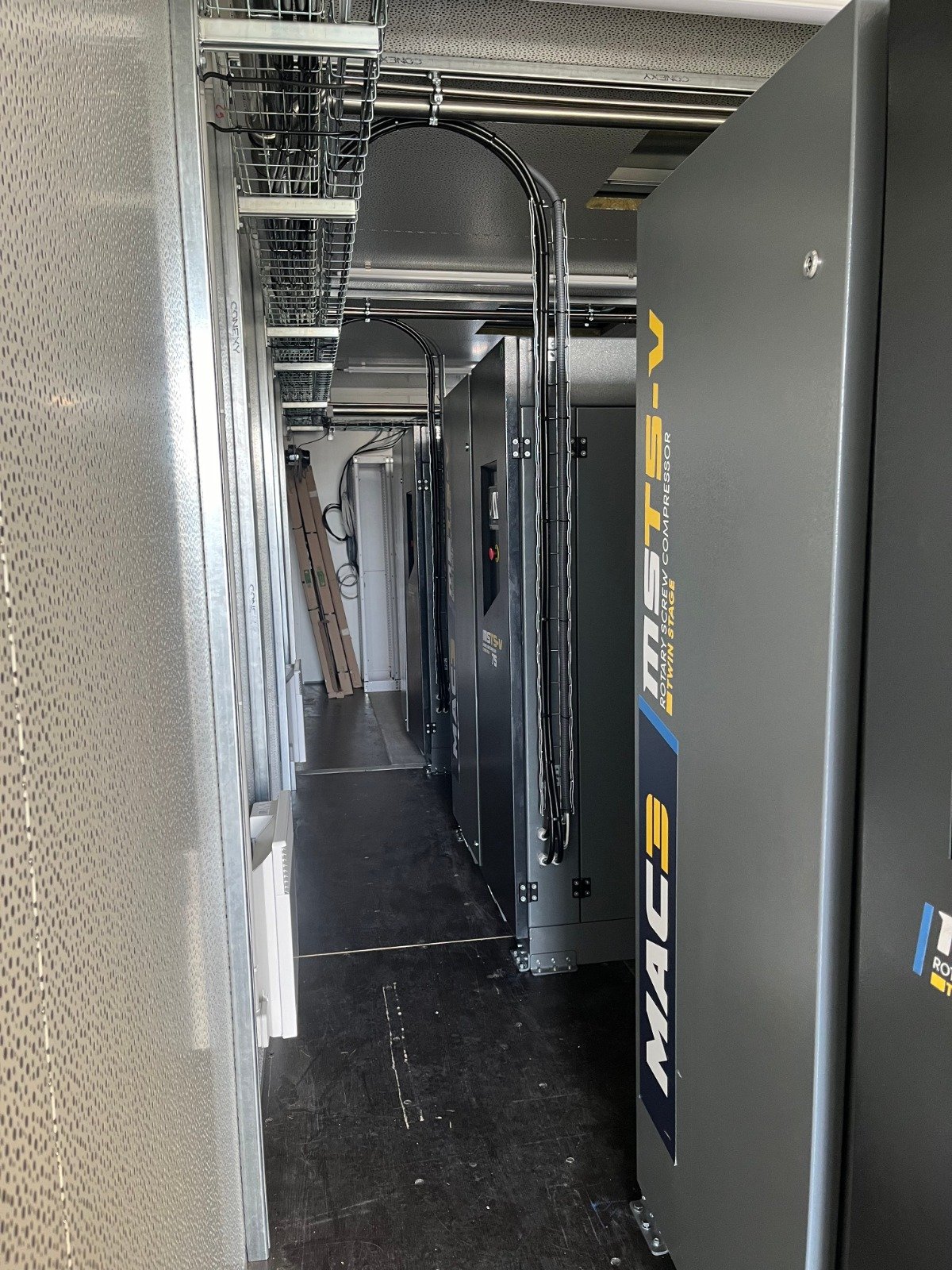

MAC3 Heavy-Duty Containerized Solution for Construction
Designed for SITINAO, this massive MAC3 air package supports large-scale concrete structure construction.
- High Output: Delivers a capacity of 2700 m3/h at air quality 1.2.1.
- Power: The system is powered by three MAC3 100hp VSD lubricated screw compressors.
- Advanced Management: Includes a full PLC system for multi-compressor management, internal climate control, and a heat regeneration desiccant dryer installed externally due to height constraints
LASER CUTTING

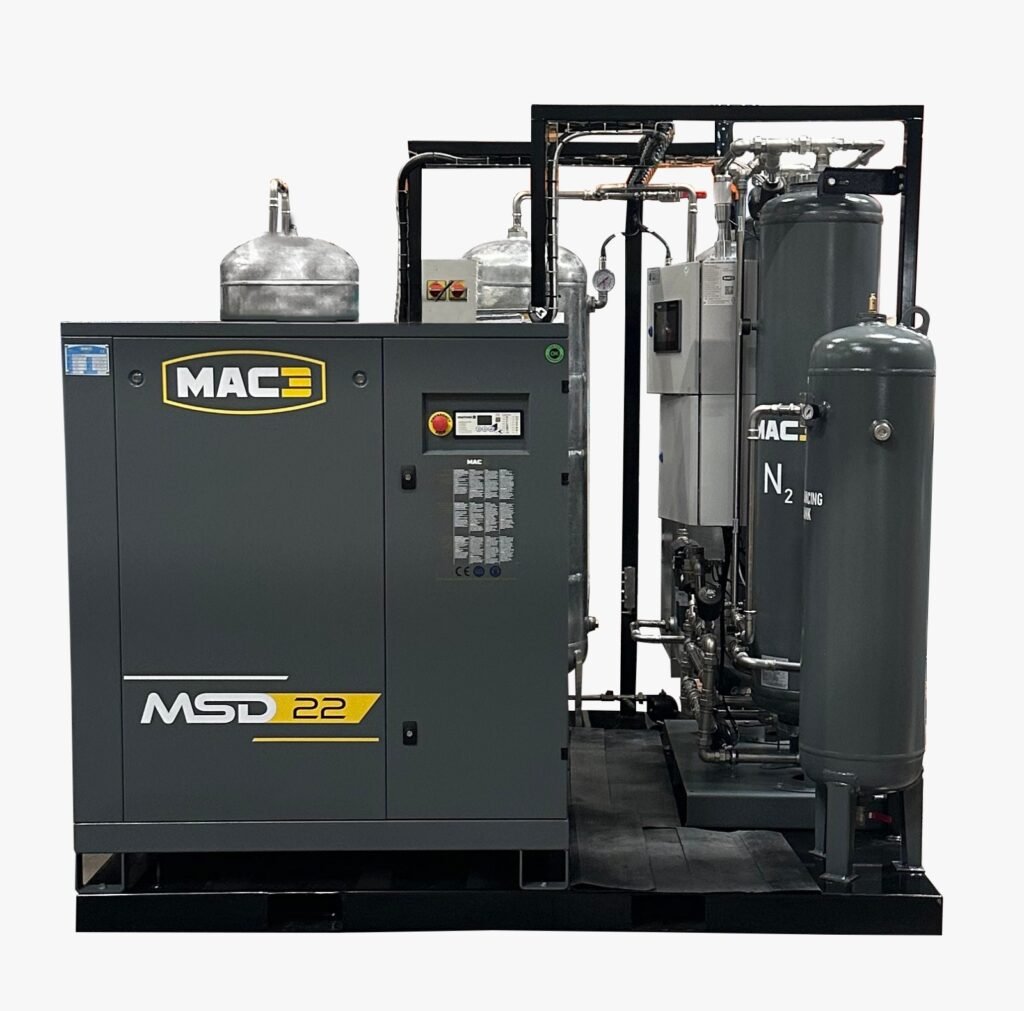

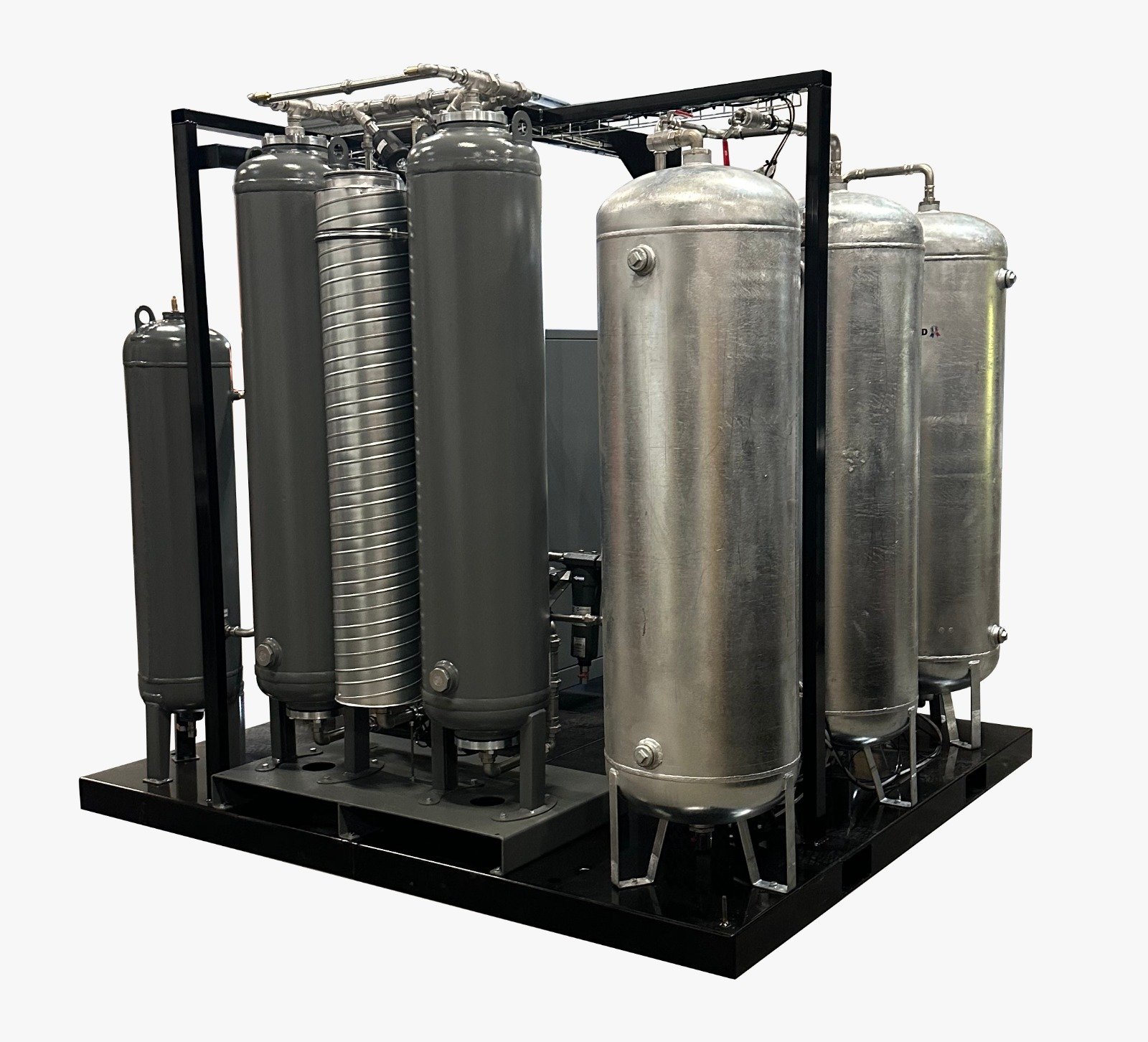

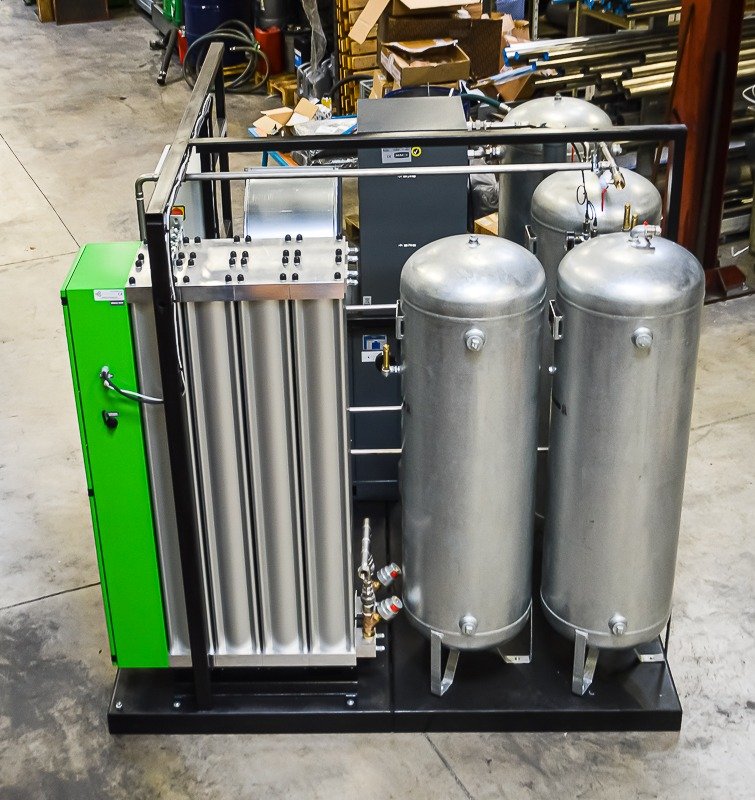

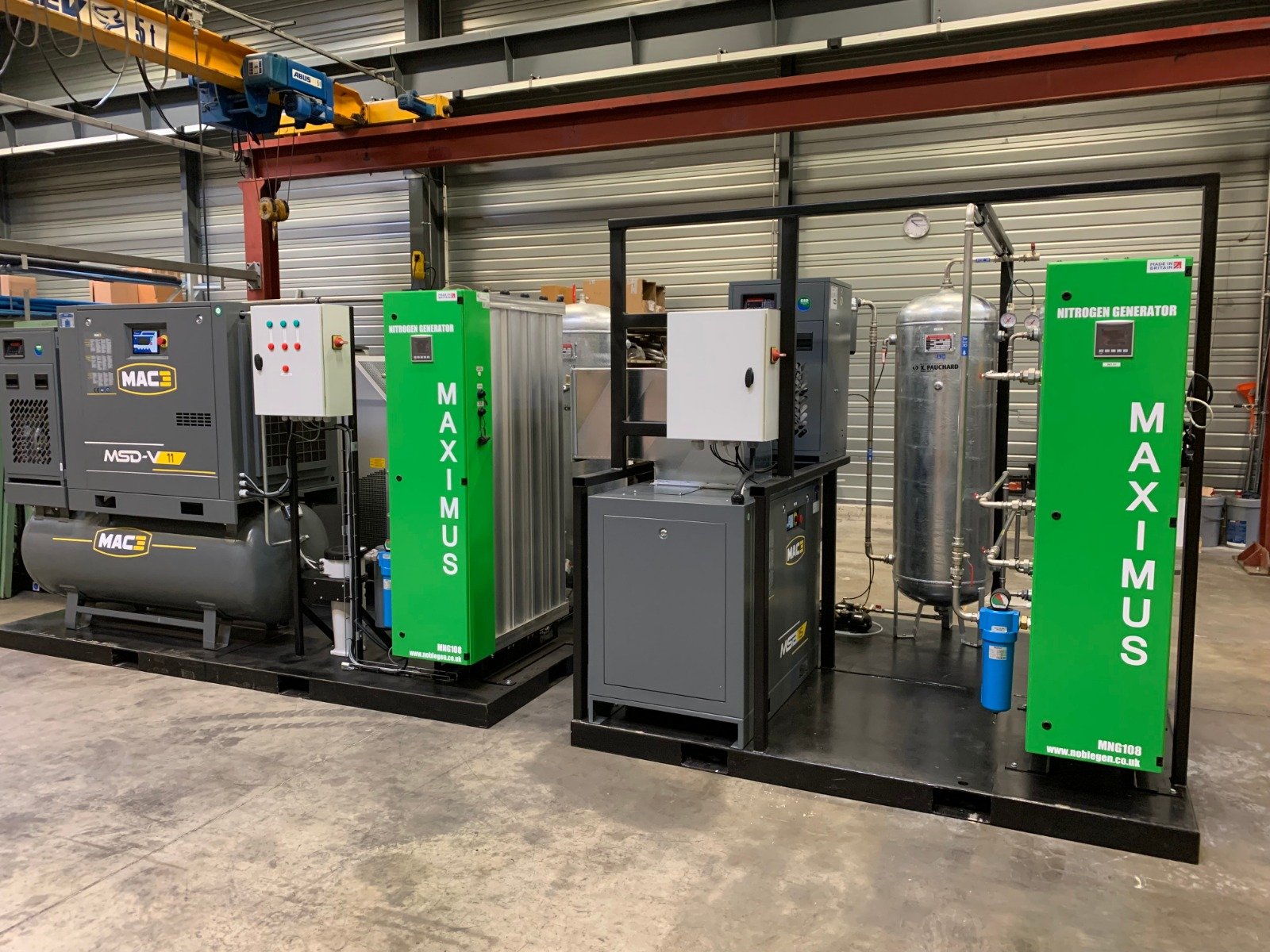

MAC3 High-Purity Nitrogen for Laser-Cutting
MAC3 produced four units of N2 packages for BODOR laser customers, generating nitrogen directly from compressed air for precision cutting.
- Purity & Pressure: Achieves 99.99% nitrogen purity with a booster designed to fill storage bottles at 300 bar.
- Components: Features a MAC3 20hp VSD compressor, a PSA-type nitrogen generator, and activated carbon filters.
- Control: Includes a regulator to supply laser machines at a steady 25-30 bar.
CONSTRUCTION

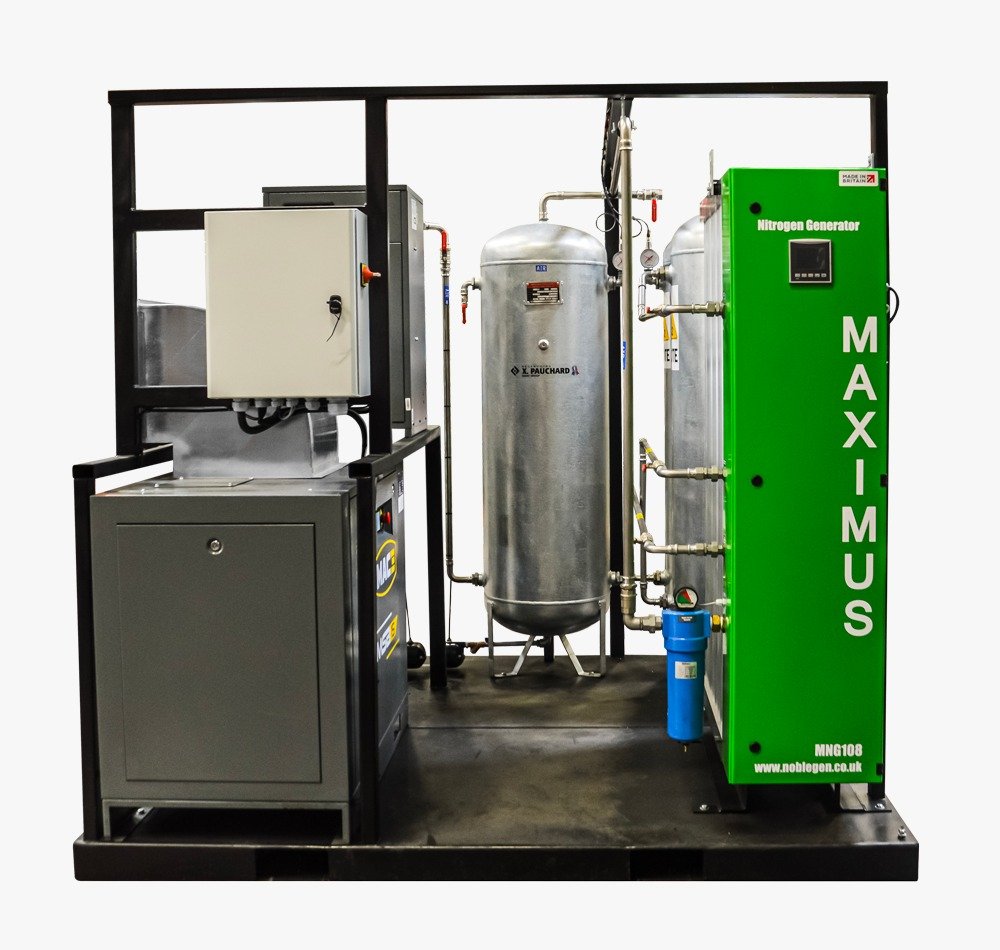

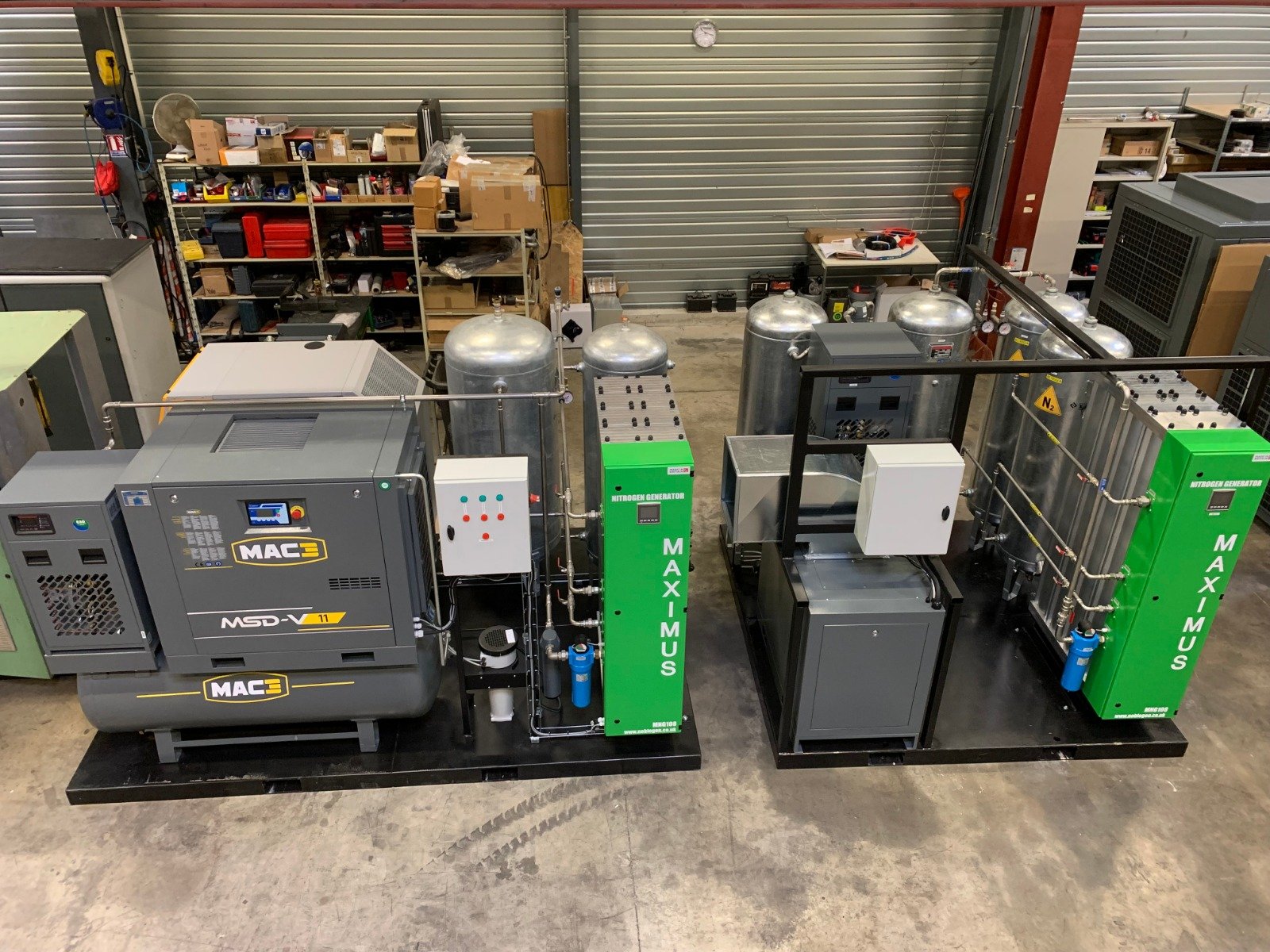

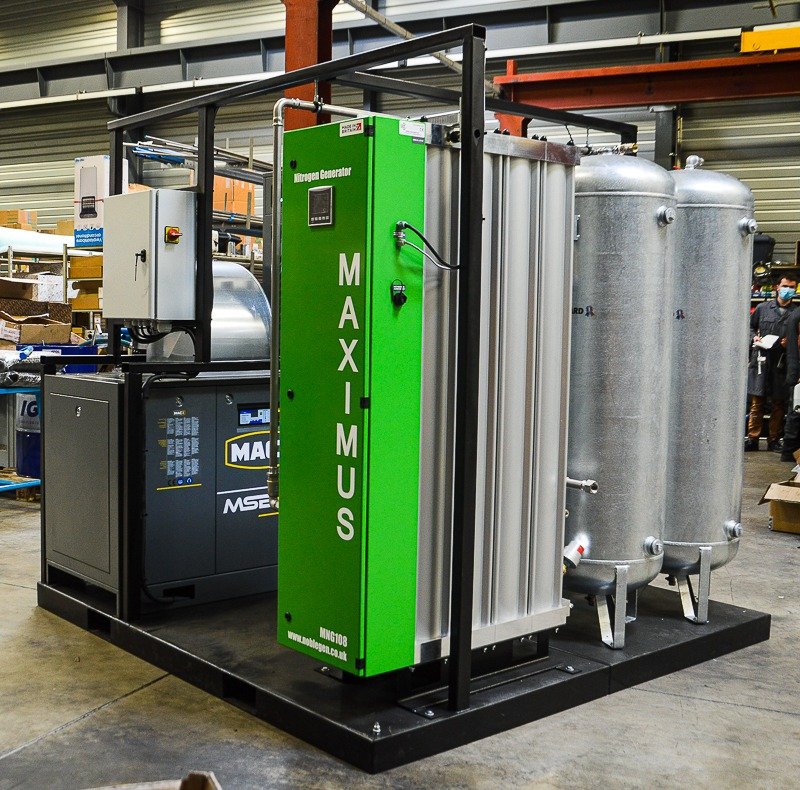

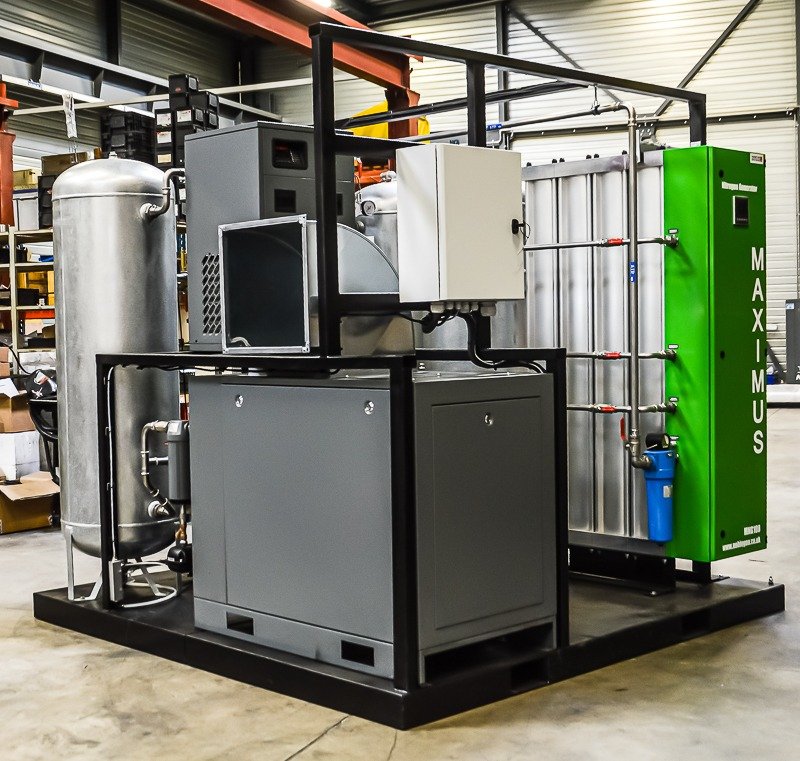

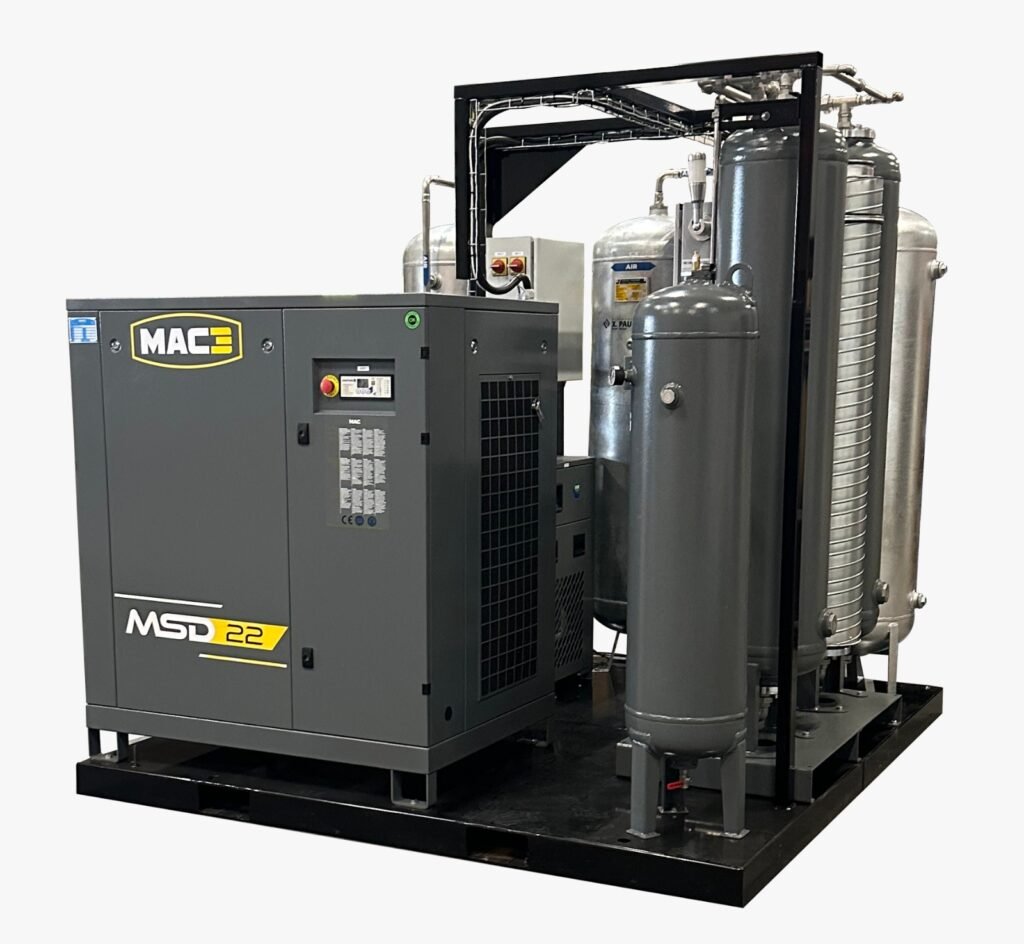

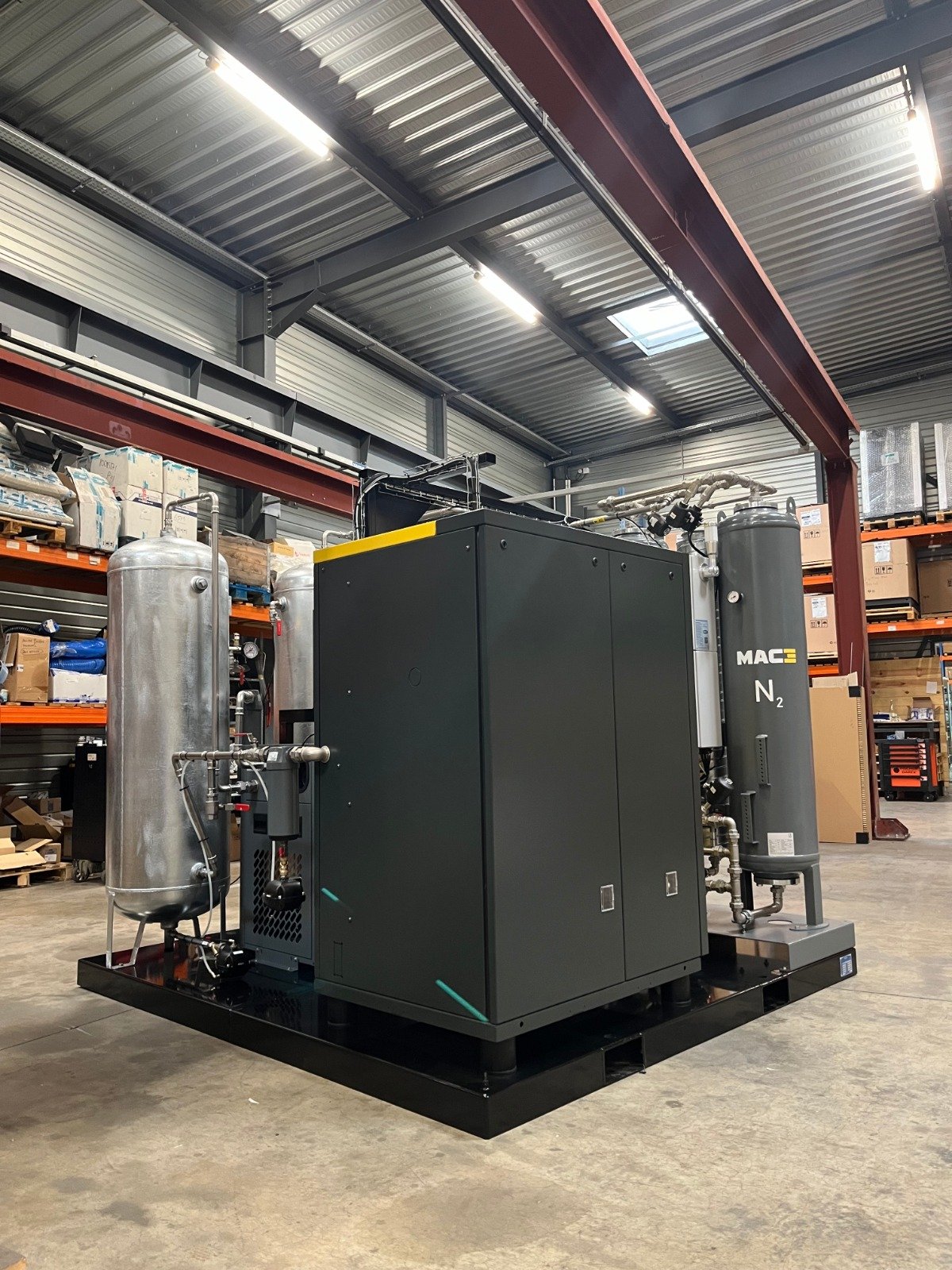

MAC3 Global N2 Supply for Oil & Gas
Project Evolution:
- Phase 1 (2021-2024): 8 units providing 20 m3/h N2 at 99.9% purity.
- Phase 2 (2025): 12 units produced in a single year with an increased capacity of 24 m3/h N2.
MAC3 Technology:
Each unit utilizes 20/30hp MAC3 lubricated screw compressors and incorporates MODBUS communication to synchronize the compressor and nitrogen generator for optimal performance
